Context

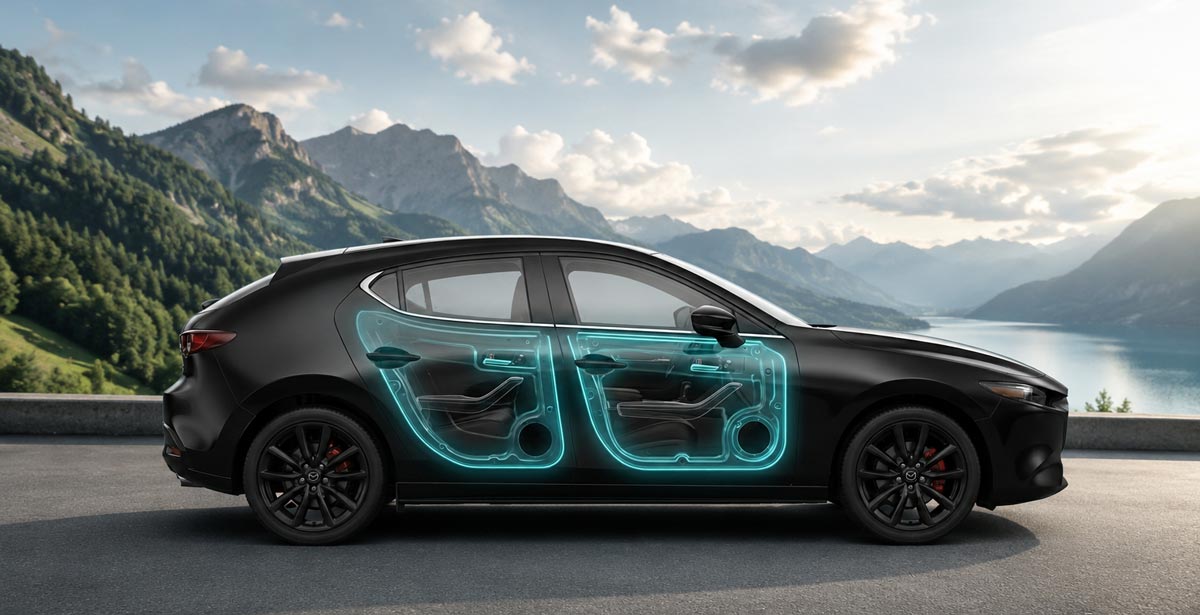

A door inner carrier is the structural backbone of a door trim assembly as it holds clip bosses, mounting points, and trim attachment features, while contributing to door panel rigidity and NVH performance. Many programs still run this component in compression-molded natural fiber mat or conventional ABS injection molding. Both have limitations at the intersection of dimensional accuracy, mass, NVH performance, and sustainability compliance.
This case study covers Goken's engineering rationale and material transition approach for upgrading a door inner carrier from compression-molded natural fiber mat to injection-molded NFPP (Natural-Fiber-Filled Polypropylene).
Challenge
Compression-molded natural fiber mat required separate calibration at each processing stage making tight dimensional control difficult to sustain across production volumes
Clip bosses, rib structures, and mounting features required secondary operations or inserts, adding cost and assembly complexity
ABS, the conventional injection-molded alternative, offered no meaningful NVH or sustainability advantage and carried a higher mass penalty
Approach
Goken evaluated three material-process routes — compression-molded natural fiber mat, ABS injection molding, and NFPP injection molding and recommended the transition to injection-molded NFPP.
Material selection: NFPP combines a polypropylene matrix with up to 50% natural fiber (flax, hemp, or kenaf) delivering lower density than ABS, inherent vibration damping, and a renewable fiber content that compression mat cannot match in a precision-molded format
Process transition: Moving from compression molding to injection molding enabled clip bosses, rib structures, and mounting features to be molded directly into the carrier, thus eliminating secondary operations
NVH tuning: Rib geometry and integrated damping features designed into the carrier to meet acoustic targets without added mass or insulation layers
Results
Parameter | ABS (Injection-Molded) | Natural Fiber Mat (Compression) | NFPP (Injection-Molded) |
Density | ~1.05 g/cm³ | Lower than ABS | ~0.50–0.60 g/cm³ |
Weight vs all-plastic | Baseline | Moderate reduction | ~50% lighter |
Sound absorption | None published | Good | Superior (microporous fiber structure) |
Vibration damping | Not a characteristic | Moderate | Better than ABS |
CO₂ vs all-plastic | Baseline | Partial reduction | ~50% lower |
Lifecycle impact | Baseline | Partial improvement | 20–25% lower |
Renewable content | 0% | High but process-limited | Up to 50% by weight |
Recyclability | Limited | Difficult | Up to 100% recycled polymer possible |
Feature integration | Good (injection molding) | Secondary ops required | Good — clips/ribs molded in |
Dimensional stability | Good | Calibration-dependent | Good — injection molding precision |
NFPP injection molding captures the mass and NVH advantages of natural fiber composites while delivering the dimensional accuracy and feature integration of conventional injection molding a combination neither ABS nor compression mat achieves on its own.
Why Goken
Material transitions like this fail when the engineering team optimizes for one variable usually mass or cost and creates a problem somewhere else. NVH degradation, dimensional drift at the assembly line, or a recyclability claim that doesn't hold up under OEM scrutiny.
Goken's interior engineering team evaluates material transitions across mass, NVH, DFM, cost, and sustainability simultaneously, not as separate workstreams
The process route recommendation (injection molding over compression molding) came from DFM analysis, not material preference
Cost engineering covers both the material unit cost and the process cost the shift from compression to injection molding changes the tooling and cycle time economics significantly, and that modelling was done before the recommendation was made
If your door carrier program needs a material upgrade that holds up on mass, NVH, dimensional accuracy, and sustainability , talk to our Engineering Team.
