Context
An automotive OEM was running a front hood assembly on a passenger vehicle platform using heavy-gauge deep-drawn steel. The assembly was a 5-part stack with 40+ fasteners and a 35 kg total mass. The program needed a material and design reset to meet weight targets, address durability failures, and improve manufacturing economics.
Challenge
Hood assembly was 15 kg over its design target — affecting front axle load distribution and vehicle handling balance
Recurring corrosion failures in coastal and high-humidity environments were generating warranty exposure and compromising the Class A surface finish
5-part steel construction with 40+ fasteners meant 45 minutes of assembly time per unit — a manufacturing cost problem at volume
Tooling and BOM complexity across 5 components added supplier management overhead the program needed to eliminate
Approach

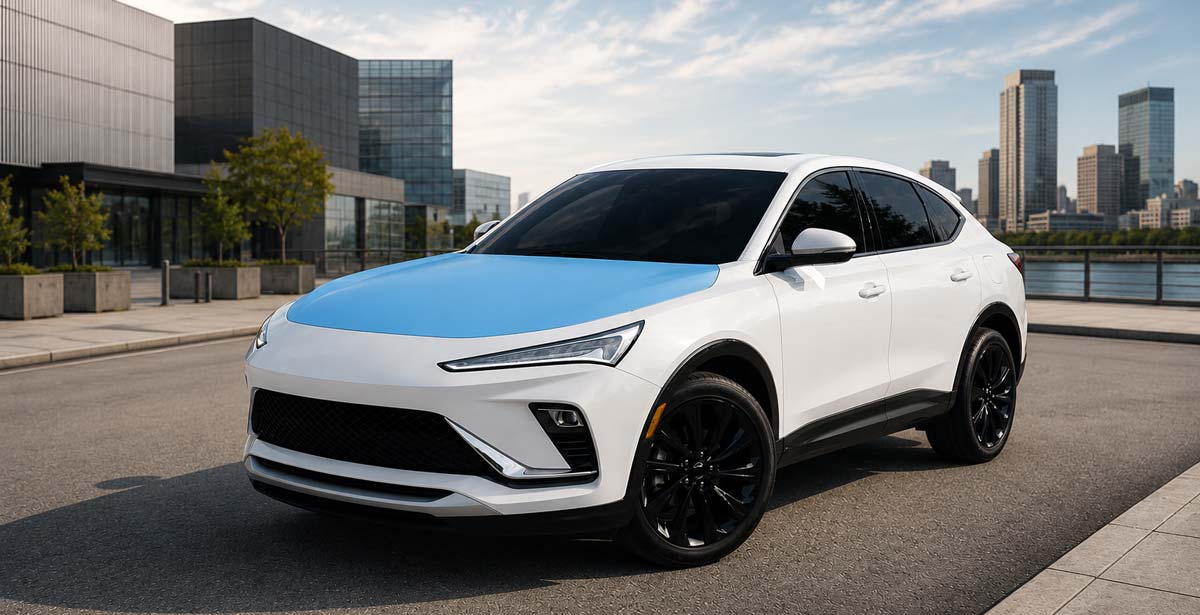

Goken led a full BIW redesign using GFRP (Glass Fiber Reinforced Plastic) processed via SMC (Sheet Molding Compound) compression molding — transitioning the assembly from a multi-piece steel structure to a single monocoque.
Material selection: GFRP/SMC chosen for its stiffness-to-weight ratio, Class A surface capability, corrosion immunity, and compatibility with automotive production volumes
Monocoque design: 5-part steel assembly consolidated into 1 integrated part, with headlight mounts and air-intake routing built directly into the molded structure
Hybrid reinforcement: Overmolded steel inserts placed at hinge and latch attachment points to handle high-cycle fatigue and latch striker pull-out loads — without adding back mass
CAE validation: Modal analysis confirmed 40% increase in natural frequency; thermal testing confirmed Tg > 150°C for underhood stability
Results
Metric | Steel Baseline | GFRP Monocoque | Improvement |
Weight | 35 kg | 19 kg | 46% reduction |
Part Count | 5 parts | 1 part | 80% reduction |
Fastener Count | 40+ | 8–10 inserts | 75% reduction |
Assembly Time | 45 min | 12 min | 73% reduction |
Tooling Investment | Baseline | –20% | 20% cost saving |
Net Unit Cost | Baseline | –5.3% | Cost positive |
NVH Performance | Baseline | +40% | Resonance eliminated |
Corrosion Protection | Coating dependent | Inherent immunity | Full protection |
The monocoque design brought the program within its original mass targets, eliminated corrosion warranty risk, and delivered a net unit cost saving despite the move to composite materials.
Why Goken
Front hood redesigns at this level require BIW structural knowledge, composite DFM experience, and cost engineering to work together — not in sequence, but simultaneously. A weight win that creates a cost problem isn't a solution.
Goken's BIW team handles hinge/latch load path design, torsional stiffness, and monocoque architecture — not just surface modeling
DFM is embedded in the design phase, not reviewed at the end — which is how part consolidation from 5 to 1 became feasible without a tooling cost penalty
Cost engineering ran parallel to design — should-costing and VAVE analysis confirmed the 5.3% net unit cost saving before the design was locked
The hybrid insert strategy (steel overmolded into GFRP) is a specific capability gap on most composite programs — Goken has done this on production-intent programs
