Lightweight Rocker Panel Development: A Metal Plastic Hybrid BIW Solution

Among all the structural components in a vehicle, the rocker panel sits at one of the most demanding intersections of all of these forces. It must absorb side impact energy, anchor the lower body in white, resist torsional flex over a vehicle lifetime, protect the battery pack in EV platforms, and still come off the press line at a competitive cost.

For decades, this combination of requirements pushed rocker design toward heavier, thicker, multi piece advanced high strength steel construction. GOKEN was engaged by a leading global automotive OEM to develop a next generation lightweight rocker panel that retained the structural performance of the existing all metal assembly while delivering substantial rocker panel weight reduction. The proposed solution was a single piece, metal plastic hybrid rocker panel that consolidates six stamped steel parts into one injection overmolded structure, marking a clear step forward in BIW lightweighting and overall vehicle mass reduction.

This case study walks through the engineering problem, the design and CAE driven validation approach, and the measurable outcome of the program. It also reflects the kind of automotive lightweighting  work GOKEN delivers across automotive, mobility, EV platforms, and structural plastics programs for Tier 1 suppliers and OEMs.

What Is a Rocker Panel and Why Does Its Weight Matter?

A rocker panel, sometimes called a sill or side sill, is the longitudinal structural body in white reinforcement that runs along the lower edge of a vehicle body between the front and rear wheel arches, directly beneath the door openings. It is one of the load carrying backbones of the lower Body in White (BIW). Structurally, the rocker is responsible for several jobs at once.

• Side impact protection and energy absorption. Under regulated FMVSS 214 side impact loading and IIHS pole impact tests, the rocker must absorb crash energy and redistribute it away from the occupant cell without buckling or causing side intrusion into the cabin. Energy absorption performance here is non negotiable.

• Torsional and bending stiffness. As a long, closed section beam, the rocker contributes meaningfully to torsional stiffness and bending stiffness across the full body in white, which in turn affects ride quality, handling, and NVH behavior.

• Battery pack protection. On battery electric vehicle platforms, the rocker is the primary defender of the battery pack during a side impact event. Most OEMs specify a maximum intrusion limit of approximately 10 mm into the battery enclosure.

• Integration and attachment. The rocker provides jacking points, hoist mounting datums, door seal interfaces, and tie in points for the floor pan, B pillar, and underbody battery tray.

Because of these multiple roles, the rocker is traditionally built as a multi piece welded BIW reinforcement using high strength steel and advanced high strength steel grades. The challenge is that this construction is also one of the heaviest contributors to lower body mass per vehicle. Reducing rocker weight by even a few kilograms compounds across fuel economy, tailpipe CO2 emissions, electric vehicle range, and overall platform competitiveness. This is exactly why rocker panel weight reduction has become one of the highest leverage moves in modern automotive weight reduction and vehicle lightweighting programs.

The Problem: A Six Piece Steel Rocker Assembly Was Carrying Too Much Mass

The baseline rocker outer and reinforcement on the existing vehicle platform was an all metal, all steel construction with a yield strength of approximately 400 MPa, built from six stamped components welded together. The complete assembly weighed 8.1 kg, with wall thicknesses ranging from 1.0 mm to 2.0 mm distributed across the outer panel, inner reinforcement, and tie in brackets. Each stamped part required its own tooling investment and added a node to the BIW dimensional stack up.

This design met every regulatory and structural target. The issue was that it met them with a significant mass penalty. Several pain points were identified early in the program:

• Excess steel content was directly reducing fuel efficiency and contributing to higher tailpipe emissions over the vehicle lifecycle, working against fleet level CO2 emissions reduction automotive targets and CAFE compliance.

• The six piece welded construction added assembly complexity, multiple weld stations, and dimensional stack up risk in the final BIW, hurting overall manufacturability and DFMA score.

• Tooling and assembly costs scaled with part count, even as raw material costs themselves remained relatively stable, making part consolidation automotive strategies increasingly attractive for cost neutrality.

• The platform was being positioned for future electrification. On any battery electric vehicle platform, every kilogram of structural mass directly affects battery sizing, EV range, and total cost of ownership.

• Conventional incremental down gauging of the steel stampings had already been pushed to its formability limit, and further thickness reduction risked failing crashworthiness or stiffness targets.

The objective set for the engineering program was clear. Reduce rocker mass meaningfully, simplify the assembly, and lose no ground on crash performance, side impact protection, NVH, or durability. Cost neutrality at the full system level was a non negotiable boundary condition. Fuel economy engineering, sustainability, and assembly simplification all had to move in the same direction at once.

GOKEN's Approach: From Multi Piece Steel to a Single Overmolded Hybrid

Rather than incrementally down gauging the existing steel pieces, the team proposed replacing the multi piece assembly with a single piece metal plastic hybrid rocker panel that uses steel where steel is needed and engineering thermoplastic where plastic is more efficient.

Material and Architecture Strategy

The hybrid architecture pairs down gauged stamped steel, still at the same 400 MPa yield grade, with an injection overmolded NORYL GTX engineering thermoplastic structure. NORYL GTX is a modified polyphenylene oxide and polyamide blend chosen for its stiffness to weight ratio, thermal stability, dimensional stability through E coat ovens, and proven track record in automotive structural plastics. The steel insert carries primary tensile and shear loads in the side impact event. The overmolded plastic forms an integrated rib network that delivers local buckling resistance, torsional support, and shape retention that previously required additional steel stiffeners or structural foam reinforcement.

By tuning where steel and structural thermoplastic each carry load, the team eliminated redundant material that existed only because the multi piece steel design could not localize its reinforcement efficiently. Glass filled polyamide variants and structural composite alternatives were also evaluated during material selection, with NORYL GTX winning on the combination of dimensional stability and bond strength to the steel insert.

This is consistent with how leading lightweighting programs in the automotive industry are moving. The same automotive overmolding principle has been applied in production on programs such as the Jeep Renegade floor rocker reinforcement, where overmolded thermoplastic replaces multiple steel stampings. It also echoes broader industry findings, where hybrid body and closure designs have delivered total vehicle weight savings of up to 40 kg through high performance structural foam and overmolded thermoplastic reinforcements. The detailed geometry, rib pattern, and steel to plastic interface design are what determine whether the approach actually delivers on its promise.

Part Consolidation From Six to One

The six piece welded assembly was redesigned as a single piece rocker reinforcement, produced through injection overmolding where the formed steel metal insert is placed into the injection mold tool and the thermoplastic structure is molded directly onto it in one shot. This single piece overmolded rocker reinforcement eliminated five weld interfaces, five secondary stamping operations, and the associated dimensional variation each interface introduced. The result is the cleanest possible expression of part consolidation automotive design philosophy.

Reinforcement dimensions for the program were 1650 mm in length, 150 mm in height, and 120 mm in depth. Cycle time on the injection molding tool was tuned to match the OEM's expected line takt, ensuring that the consolidated part did not become a production bottleneck even with the more complex molding process.

Validation: CAE Plus Physical Testing

Lightweighting only matters if the structure still performs. The hybrid rocker was validated through a layered automotive CAE validation plan that combined non linear CAE simulation with physical testing across the full lifecycle.

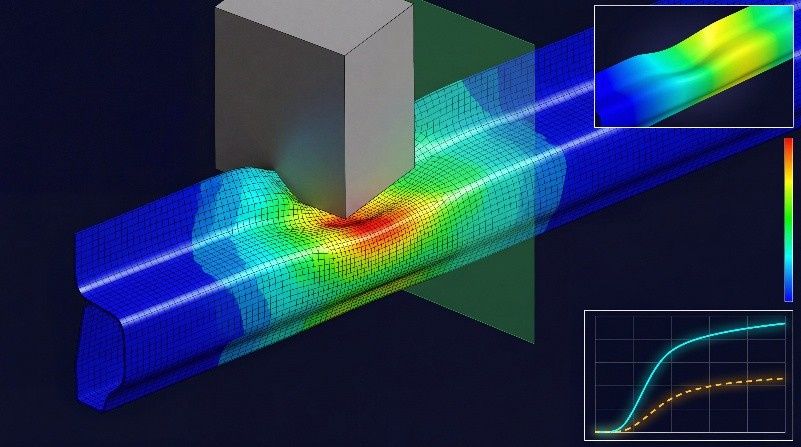

• Non linear CAE in LS-DYNA. The hybrid rocker was simulated under full vehicle FMVSS 214 side impact loading using LS-DYNA crash simulation. The acceptance criterion was zero buckling under regulated load conditions. The simulated structure passed cleanly with no buckling initiation observed and side intrusion held below the OEM's specified limit.

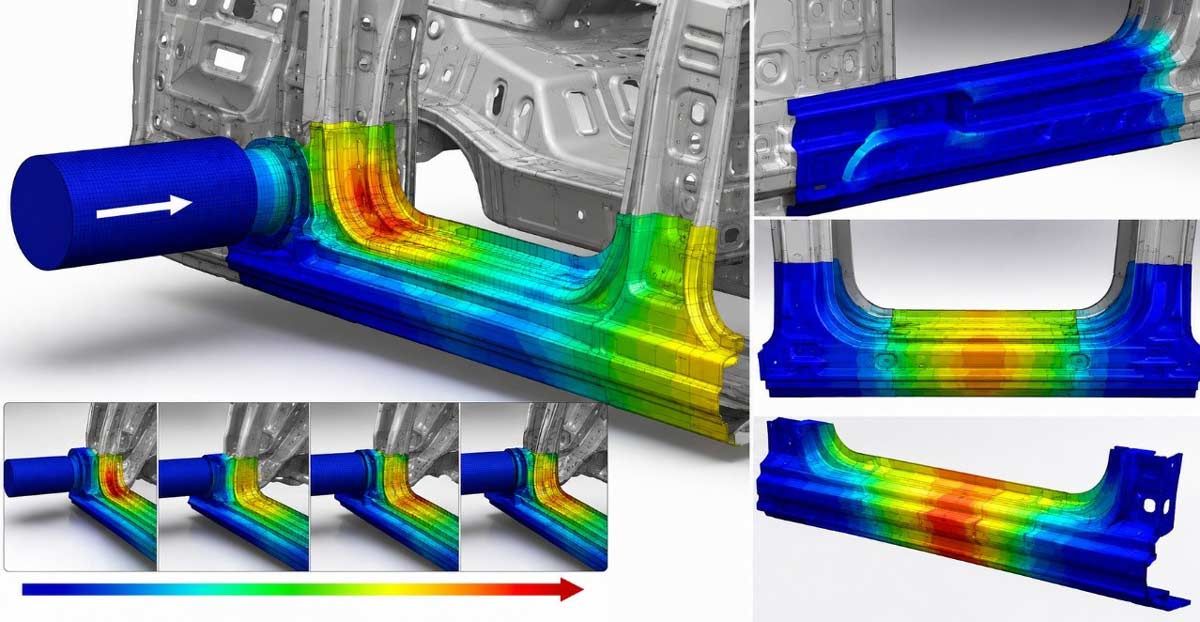

• Pole impact and IIHS pole simulation. Side pole impact simulations were run alongside the FMVSS 214 cases to confirm performance against IIHS expectations and the most demanding side intrusion scenarios.

• Lap shear and pull out testing. Physical coupons of the steel to plastic interface were taken through lap shear testing and pull out testing to confirm that the bond between the metal insert and the overmolded thermoplastic resin would not become the structural weak point under load.

• Thermal cycle testing from negative 40 to positive 90 degrees Celsius. The interface and overall part were cycled across the full automotive service temperature window. Post test inspection confirmed a delamination free interface and full dimensional stability through the worst case thermal excursion.

• E coat and paint shop compatibility. Material selection confirmed that the engineering thermoplastic could survive the OEM's E coat oven and paint shop without warpage or property loss, an essential check for any BIW level component.

This validation stack is consistent with how GOKEN structures its broader validation, verification, and CAE programs across automotive structural and chassis components.

Engineering With Manufacturability From Day One

The hybrid design was developed with the molding partner's process window embedded in the design loop from the first iteration. Steel insert geometry was tuned for press tonnage, blank holder force, and tool draft. Rib thickness, gating, and runner layout were optimized to avoid sink marks, weld lines in load critical zones, and warpage during cooling. Mold flow simulation was run in parallel with structural CAE to make sure the part could actually be molded at production volume, with consistent dimensional control.

Cycle time was modeled alongside structural performance so that the part would meet not just engineering targets but also volume production cost targets. The DFMA (Design for Manufacture and Assembly) score improved materially from the baseline. This is the kind of early integration GOKEN automotive engineering consistently emphasizes for structural plastics, hybrid components, fiber reinforced parts, and any BIW engineering consulting engagement.

What GOKEN Delivered: The Numbers

The hybrid rocker delivered measurable wins on every dimension that was set as a target. The full baseline versus proposed comparison is shown below.

The headline outcomes:

• 33 percent rocker panel weight reduction, equivalent to 2.7 kg per side and 5.4 kg per vehicle of total vehicle mass reduction.

• Six parts consolidated to one, removing five weld interfaces and the associated dimensional variation in the BIW.

• Zero buckling under FMVSS 214 side impact loading in non linear CAE, with all crash energy absorption and structural integrity targets preserved.

• Side intrusion held below the OEM specified limit, protecting the cabin and the battery pack space under regulated pole impact conditions.

• Delamination free steel to plastic interface across negative 40 to positive 90 degrees Celsius, confirmed through coupon level and full part thermal cycle testing.

• Estimated fuel economy improvement of 0.2 km per liter and approximately 14 kg of CO2 emissions reduction automotive per vehicle annually, supporting fleet level sustainability and fuel economy engineering targets.

• Reduced assembly cost through elimination of multiple weld stations, simpler logistics, lower BIW dimensional control complexity, and reduced floor space requirements at the assembly line.

HEADLINE RESULT
The metal plastic hybrid rocker solution delivered a 33 percent weight reduction (5.4 kg per car) while maintaining peak structural safety and crash performance, validated against all FMVSS 214 side impact requirements. The design directly supports sustainability goals by cutting approximately 14 kg of CO2 emissions annually per vehicle and improving fuel economy by up to 0.2 km per liter.

Why This Matters for the Next Generation of Vehicle Platforms

The shift from multi piece steel structures to integrated metal plastic hybrid BIW design is not a one off engineering experiment. It is becoming a repeatable strategy across the automotive industry for any structural component where load paths can be decomposed into a primary steel skeleton plus a thermoplastic stiffening network. Rocker panels, front end carriers, instrument panel reinforcements, cross car beams, seat backs, door side impact beams, and battery tray surrounds all share this characteristic and have all seen production deployments of hybrid composite or overmolded designs.

For OEMs working on internal combustion platforms, the immediate benefits are fuel economy, lower emissions, and reduced assembly cost. For battery electric platforms, the calculation is even more direct. Every kilogram removed from the BIW translates into either extended EV range at constant battery size or reduced battery size at constant range. Either outcome moves a program meaningfully closer to its commercial and sustainability targets.

This case study reflects a wider capability GOKEN brings across mobility programs, where structural lightweighting, material substitution, CAE driven validation, and design for manufacture come together in a single integrated engineering offering. It is part of how GOKEN BIW services support OEMs and Tier 1 suppliers looking for end to end automotive lightweighting services and trusted BIW engineering consulting.

Conclusion

Lightweighting the rocker panel is one of the highest value moves available in lower body engineering, but it is also one of the hardest, because the part has to do too many things at once: side impact protection, torsional stiffness, battery pack protection on EVs, attachment integration, manufacturability, and cost. By replacing a six piece, all steel assembly with a single piece, injection overmolded, metal plastic hybrid rocker panel, GOKEN delivered a 33 percent mass reduction without giving up any structural performance, crash compliance, or thermal durability. The program also showed that part consolidation, manufacturing simplification, and structural integrity are not competing goals when the design is approached as a coupled materials, geometry, and validation problem from the start.

The result is a proven, scalable approach to BIW lightweighting that translates directly into better fuel economy, lower CO2 emissions, and a stronger foundation for future battery electric vehicle platforms. It also illustrates the depth of GOKEN automotive engineering across automotive lightweighting services, CAE validation, structural plastics, and material substitution, with a track record that supports OEMs and Tier 1 suppliers looking for serious BIW engineering consulting.
